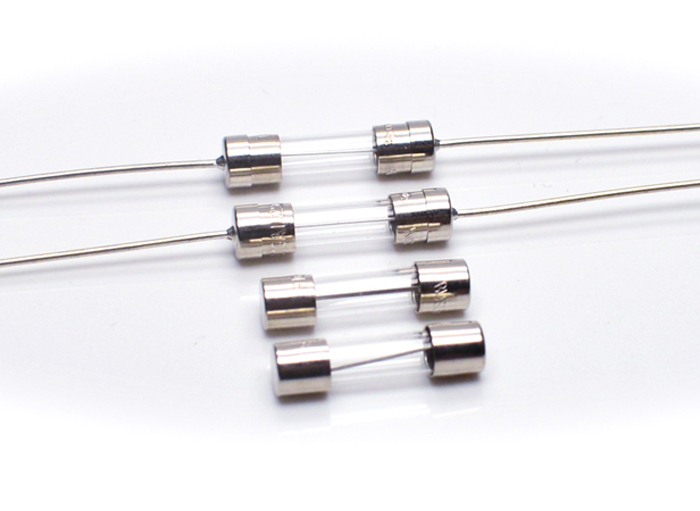

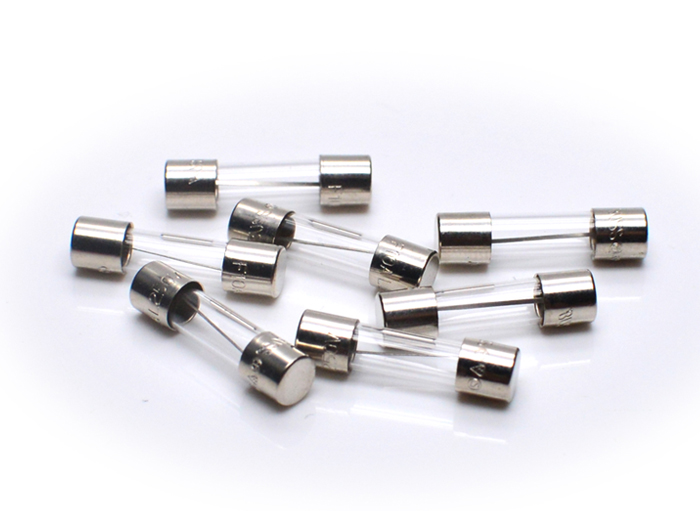

bussmann 快断保险丝 AGC系列6.3*32mm 玻璃保险丝

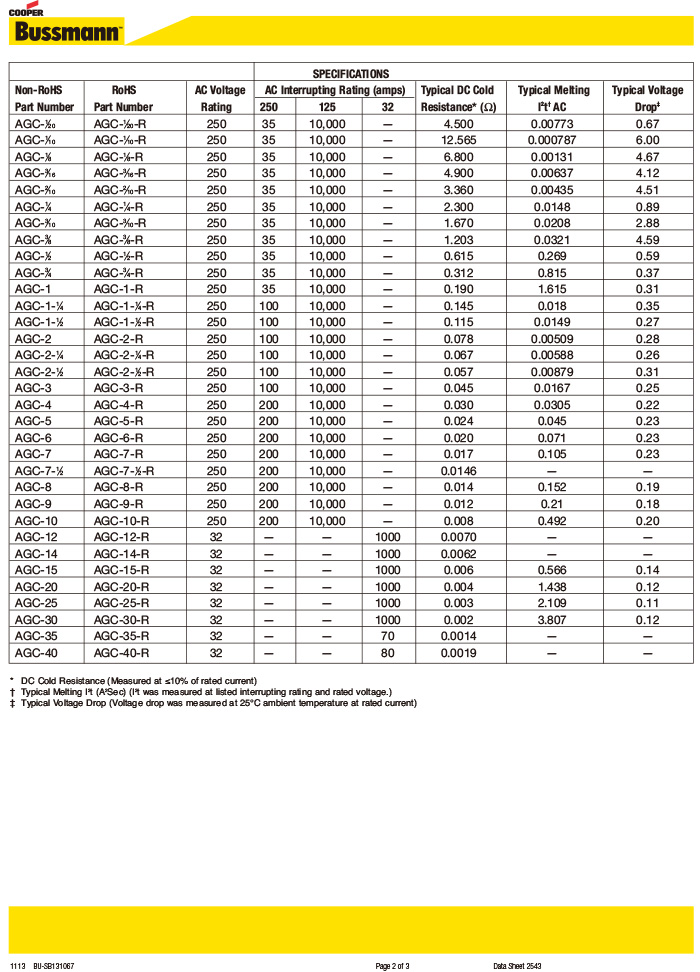

参数表
| 料号 | 额定电压 | 分断能力 | 冷电阻 | 熔断能量值 |
| AGC-1/20-R | 250V | 35A(250Vac) | 4.500 | 0.00773 |
| AGC-1/10-R | 250V | 35A(250Vac) | 12.565 | 0.000787 |
| AGC-1/8-R | 250V | 35A(250Vac) | 6.800 | 0.00131 |
| AGC-3/16-R | 250V | 35A(250Vac) | 4.900 | 0.00637 |
| AGC-2/10-R | 250V | 35A(250Vac) | 3.360 | 0.00435 |
| AGC-1/4-R | 250V | 35A(250Vac) | 2.300 | 0.0148 |
| AGC-3/10-R | 250V | 35A(250Vac) | 1.670 | 0.0208 |
| AGC-3/8-R | 250V | 35A(250Vac) | 1.203 | 0.0321 |
| AGC-1/2-R | 250V | 35A(250Vac) | 0.615 | 0.269 |
| AGC-3/4-R | 250V | 35A(250Vac) | 0.312 | 0.815 |
| AGC-1-R | 250V | 35A(250Vac) | 0.190 | 1.615 |
| AGC-1-1/4-R | 250V | 100A(250Vac) | 0.145 | 0.018 |
| AGC-1-1/2-R | 250V | 100A(250Vac) | 0.115 | 0.0149 |
| AGC-2-R | 250V | 100A(250Vac) | 0.078 | 0.00509 |
| AGC-2-1/4-R | 250V | 100A(250Vac) | 0.067 | 0.00588 |
| AGC-2-1/2-R | 250V | 100A(250Vac) | 0.057 | 0.00879 |
| AGC-3-R | 250V | 100A(250Vac) | 0.045 | 0.0167 |
| AGC-4-R | 250V | 200A(250Vac) | 0.030 | 0.0305 |
| AGC-5-R | 250V | 200A(250Vac) | 0.024 | 0.045 |
| AGC-6-R | 250V | 200A(250Vac) | 0.020 | 0.071 |
| AGC-7-R | 250V | 200A(250Vac) | 0.017 | 0.105 |
| AGC-7-1/2-R | 250V | 200A(250Vac) | 0.0146 | - |
| AGC-8-R | 250V | 200A(250Vac) | 0.014 | 0.152 |
| AGC-9-R | 250V | 200A(250Vac) | 0.012 | 0.21 |
| AGC-10-R | 250V | 200A(250Vac) | 0.008 | 0.492 |
| AGC-12-R | 32V | 1000A(32Vac) | 0.0070 | - |
| AGC-14-R | 32V | 1000A(32Vac) | 0.0062 | - |
| AGC-15-R | 32V | 1000A(32Vac) | 0.006 | 0.566 |
| AGC-20-R | 32V | 1000A(32Vac) | 0.004 | 1.438 |
| AGC-25-R | 32V | 1000A(32Vac) | 0.003 | 2.109 |
| AGC-30-R | 32V | 1000A(32Vac) | 0.002 | 3.807 |
| AGC-35-R | 32V | 1000A(32Vac) | 0.0014 | - |
| AGC-40-R | 32V | 1000A(32Vac) | 0.0019 | - |
