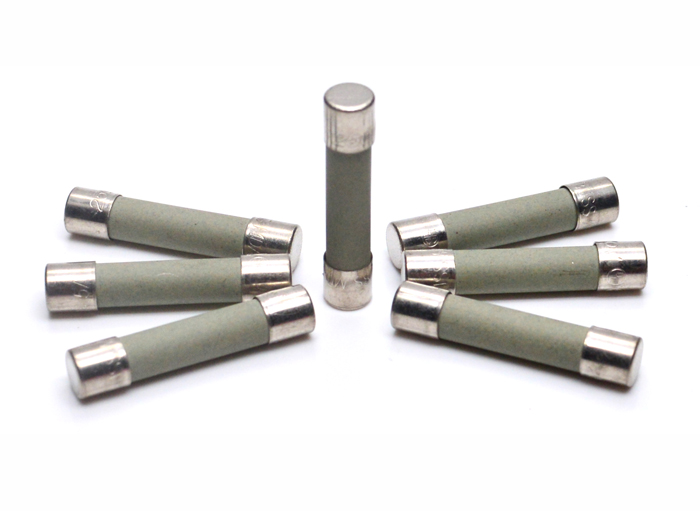

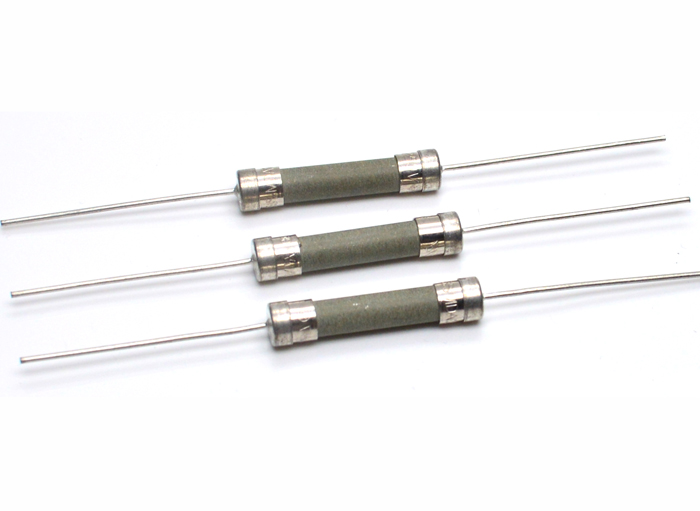

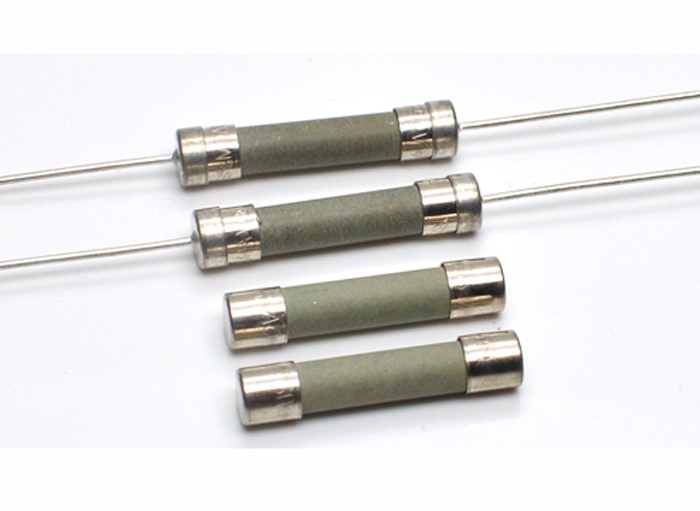

bussmann 电路保护器 ABC 带引线保 陶瓷 保险丝管

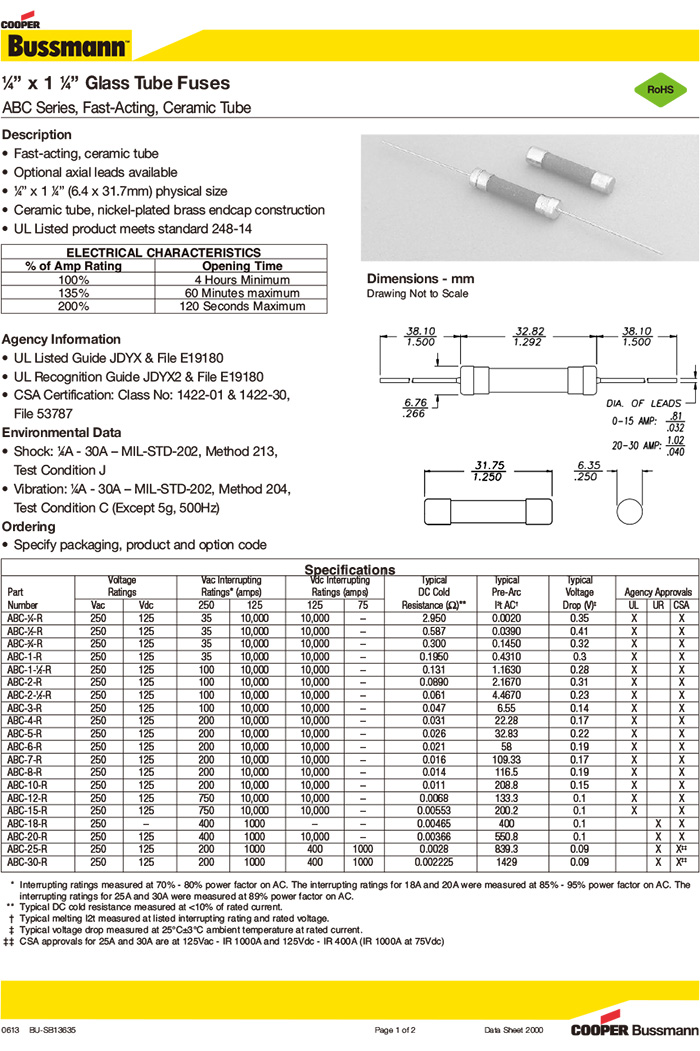

参数表
| 料号 |
额定电压 （V/ac） |
分断能力 | 冷电阻 | 熔断能量值 |
| BK/ABC-1/4-R | 250 | 35 | 2.950 | 0.0020 |
| BK/ABC-1/2-R | 250 | 35 | 0.587 | 0.0390 |
| BK/ABC-3/4-R | 250 | 35 | 0.300 | 0.1450 |
| BK/ABC-1-R | 250 | 35 | 0.1950 | 0.4310 |
| BK/ABC-1-1/2-R | 250 | 100 | 0.131 | 1.1630 |
| BK/ABC-2-R | 250 | 100 | 0.0890 | 2.1670 |
| BK/ABC-2-1/2-R | 250 | 100 | 0.061 | 4.4670 |
| BK/ABC-3-R | 250 | 100 | 0.047 | 6.55 |
| BK/ABC-4-R | 250 | 200 | 0.031 | 22.28 |
| BK/ABC-5-R | 250 | 200 | 0.026 | 32.83 |
| BK/ABC-6-R | 250 | 200 | 0.021 | 58 |
| BK/ABC-7-R | 250 | 200 | 0.016 | 109.33 |
| BK/ABC-8-R | 250 | 200 | 0.014 | 116.5 |
| BK/ABC-10-R | 250 | 200 | 0.011 | 208.8 |
| BK/ABC-12-R | 250 | 750 | 0.0068 | 133.3 |
| BK/ABC-15-R | 250 | 750 | 0.00553 | 200.2 |
| BK/ABC-18-R | 250 | 400 | 0.00465 | 400 |
| BK/ABC-20-R | 250 | 400 | 0.00366 | 550.8 |
| BK/ABC-25-R | 250 | 200 | 0.0028 | 839.3 |
| BK/ABC-30-R | 250 | 200 | 0.002225 | 1429 |
