巴斯曼保险丝 C519 5*15MM 慢断保险丝

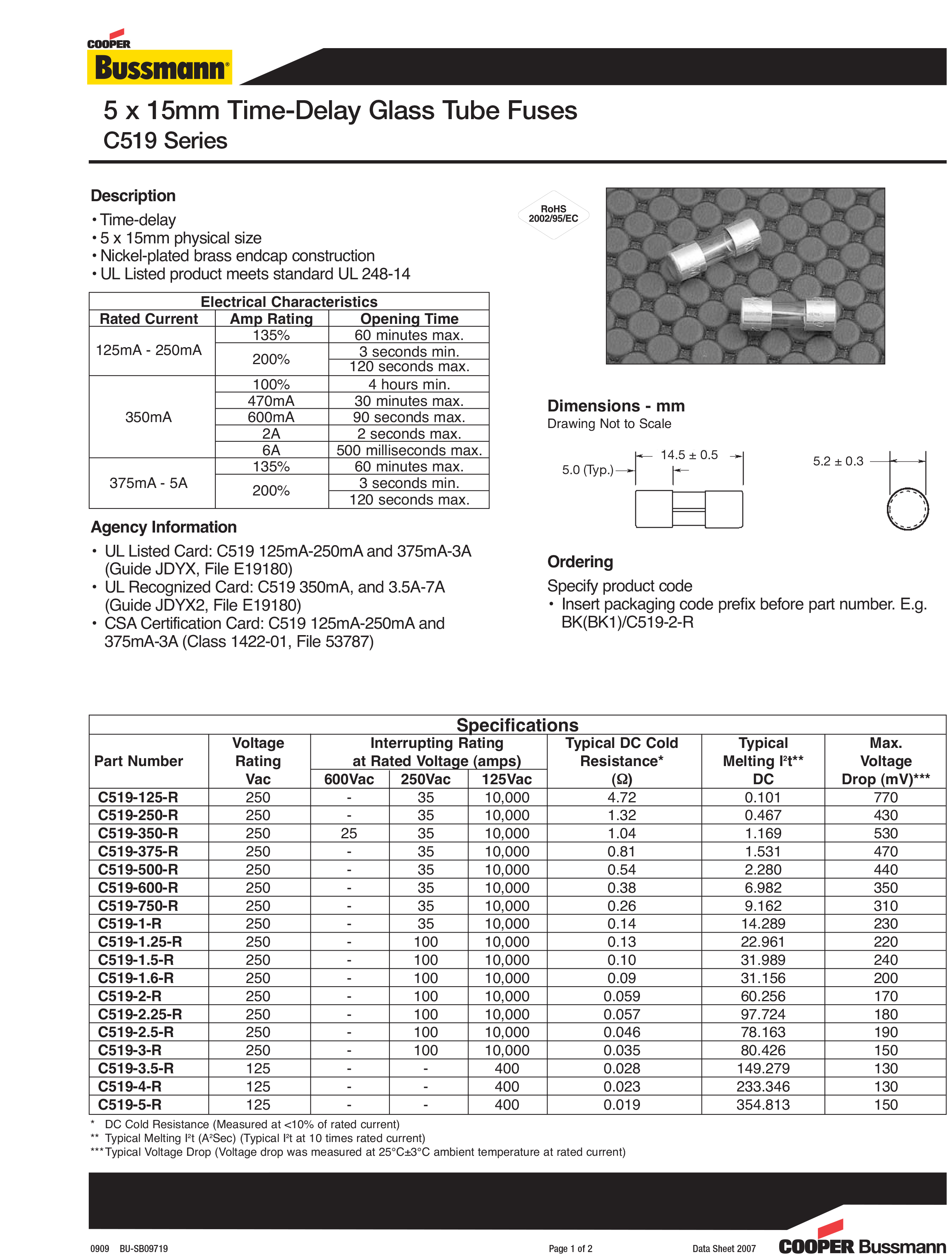

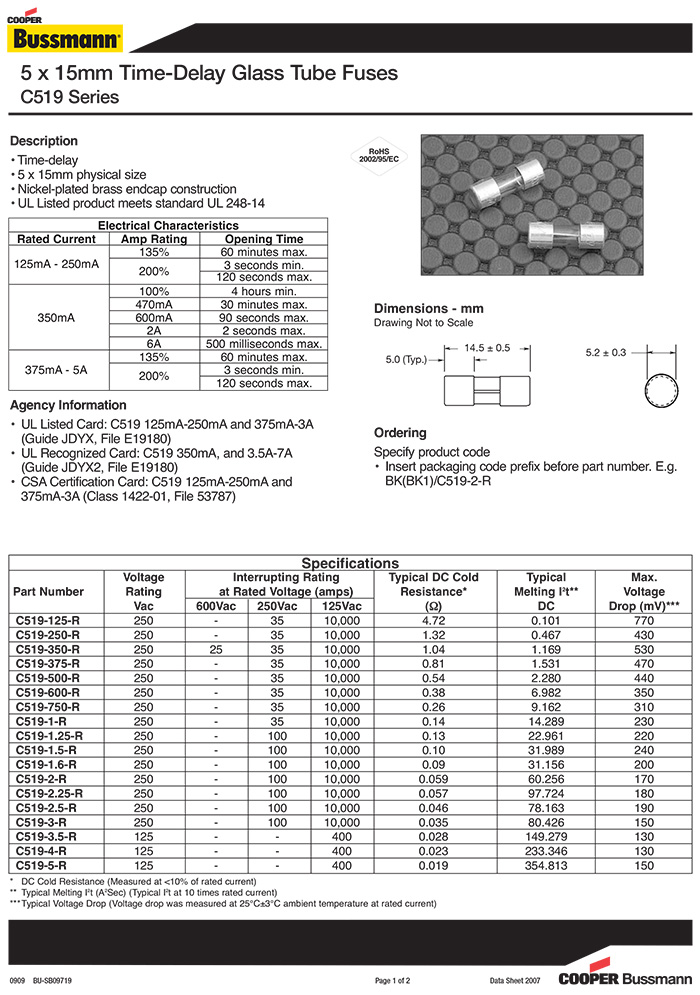

参数表
| 料号 | 额定电压 | 分断能力 | 冷电阻 | 熔断能量值 |
| BK1/C519-125-R | 250V | 35A(250Vac) | 4.72 | 0.101 |
| BK1/C519-250-R | 250V | 35A(250Vac) | 1.32 | 0.467 |
| BK1/C519-350-R | 250V | 35A(250Vac) | 1.04 | 1.169 |
| BK1/C519-375-R | 250V | 35A(250Vac) | 0.81 | 1.531 |
| BK1/C519-500-R | 250V | 35A(250Vac) | 0.54 | 2.280 |
| BK1/C519-600-R | 250V | 35A(250Vac) | 0.38 | 6.982 |
| BK1/C519-750-R | 250V | 35A(250Vac) | 0.26 | 9.162 |
| BK1/C519-1-R | 250V | 35A(250Vac) | 0.14 | 14.289 |
| BK1/C519-1.25-R | 250V | 100A(250Vac) | 0.13 | 22.961 |
| BK1/C519-1.5-R | 250V | 100A(250Vac) | 0.10 | 31.989 |
| BK1/C519-1.6-R | 250V | 100A(250Vac) | 0.09 | 31.156 |
| BK1/C519-2-R | 250V | 100A(250Vac) | 0.059 | 60.256 |
| BK1/C519-2.25-R | 250V | 100A(250Vac) | 0.057 | 97.724 |
| BK1/C519-2.5-R | 250V | 100A(250Vac) | 0.046 | 78.163 |
| BK1/C519-3-R | 250V | 100A(250Vac) | 0.035 | 80.426 |
| BK1/C519-3.5-R | 125V | 400A(125Vac) | 0.028 | 149.279 |
| BK1/C519-4-R | 125V | 400A(125Vac) | 0.023 | 233.346 |
| BK1/C519-5-R | 125V | 400A(125Vac) | 0.019 | 354.813 |
