bussmann GDB玻璃管保险丝 快断 250V保险丝

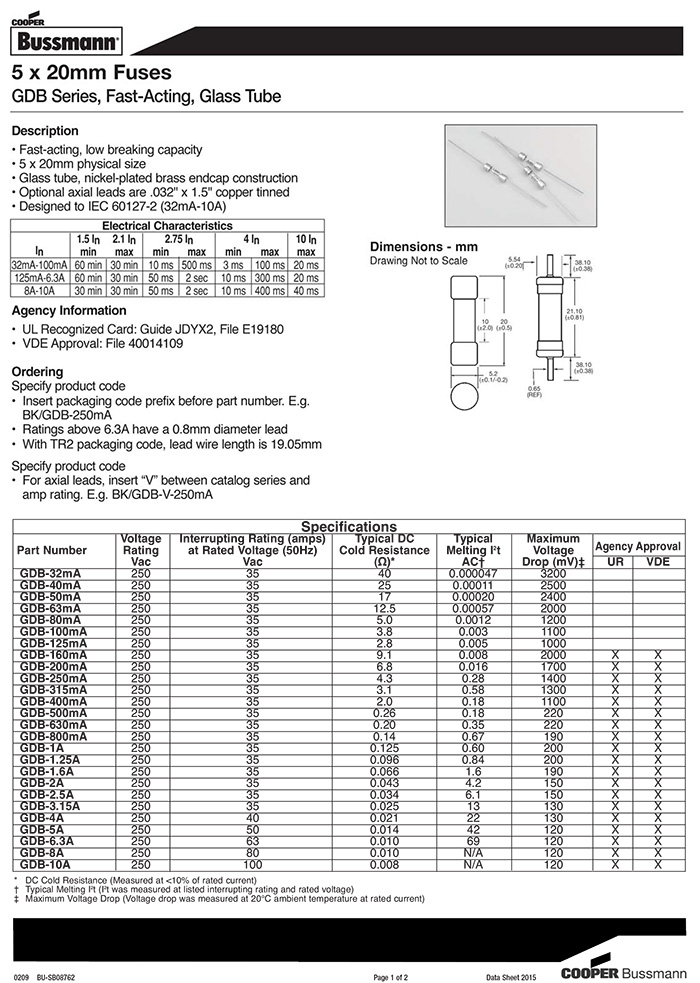

参数表
| 料号 | 额定电压 | 分断能力 | 冷电阻 | 熔断能量值 |
| GDB-32mA | 250V | 35A | 40 | 0.000047 |
| GDB-40mA | 250V | 35A | 25 | 0.00011 |
| GDB-50mA | 250V | 35A | 17 | 0.00020 |
| GDB-63mA | 250V | 35A | 12.5 | 0.00057 |
| GDB-80mA | 250V | 35A | 5.0 | 0.0012 |
| GDB-100mA | 250V | 35A | 3.8 | 0.003 |
| GDB-125mA | 250V | 35A | 2.8 | 0.005 |
| GDB-160mA | 250V | 35A | 9.1 | 0.008 |
| GDB-200mA | 250V | 35A | 6.8 | 0.016 |
| GDB-250mA | 250V | 35A | 4.3 | 0.28 |
| GDB-315mA | 250V | 35A | 3.1 | 0.58 |
| GDB-400mA | 250V | 35A | 2.0 | 0.18 |
| GDB-500mA | 250V | 35A | 0.26 | 0.18 |
| GDB-630mA | 250V | 35A | 0.20 | 0.35 |
| GDB-800mA | 250V | 35A | 0.14 | 0.67 |
| GDB-1A | 250V | 35A | 0.125 | 0.60 |
| GDB-1.25A | 250V | 35A | 0.096 | 0.84 |
| GDB-1.6A | 250V | 35A | 0.066 | 1.6 |
| GDB-2A | 250V | 35A | 0.043 | 4.2 |
| GDB-2.5A | 250V | 35A | 0.034 | 6.1 |
| GDB-3.15A | 250V | 35A | 0.025 | 13 |
| GDB-4A | 250V | 40A | 0.021 | 22 |
| GDB-5A | 250V | 50A | 0.014 | 42 |
| GDB-6.3A | 250V | 63A | 0.010 | 69 |
| GDB-8A | 250V | 80A | 0.010 | N/A |
| GDB-10A | 250V | 100A | 0.008 | N/A |
