美国Bussmann 伊顿 S505 慢断 陶瓷管 电流保险丝

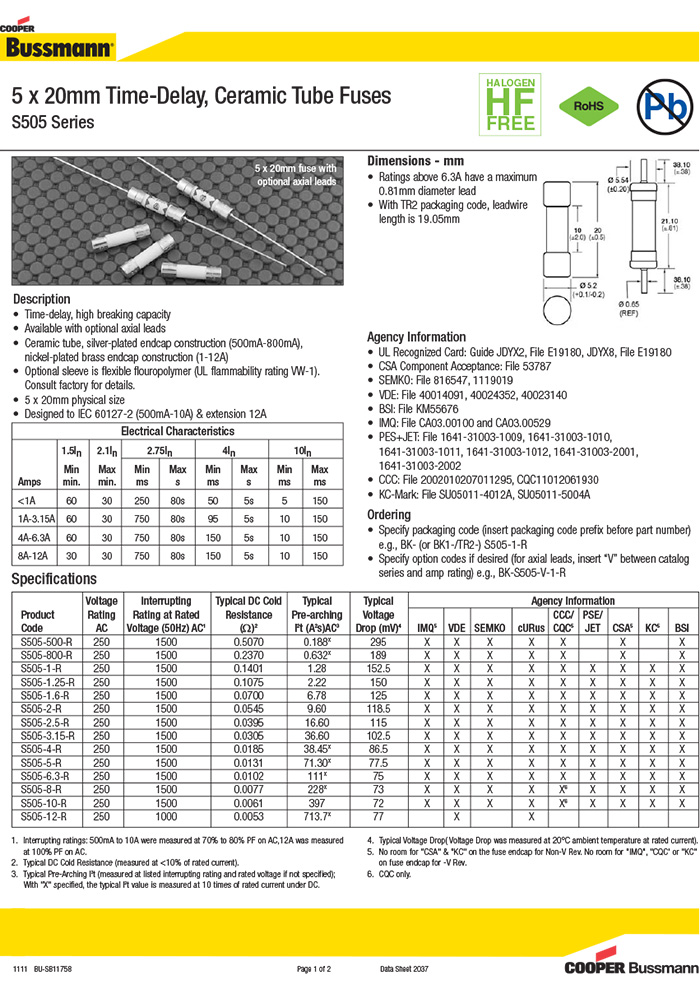

参数表
| 料号 | 额定电压 | 分断能力 | 冷电阻 | 熔断能量值 |
| S505-500-R | 250 | 1500 | 0.5070 | 0.188x |
| S505-800-R | 250 | 1500 | 0.2370 | 0.632x |
| S505-1-R | 250 | 1500 | 0.1401 | 1.28 |
| S505-1.25-R | 250 | 1500 | 0.1075 | 2.22 |
| S505-1.6-R | 250 | 1500 | 0.0700 | 6.78 |
| S505-2-R | 250 | 1500 | 0.0545 | 9.60 |
| S505-2.5-R | 250 | 1500 | 0.0395 | 16.60 |
| S505-3.15-R | 250 | 1500 | 0.0305 | 36.60 |
| S505-4-R | 250 | 1500 | 0.0185 | 38.45x |
| S505-5-R | 250 | 1500 | 0.0131 | 71.30x |
| S505-6.3-R | 250 | 1500 | 0.0102 | 111x |
| S505-8-R | 250 | 1500 | 0.0077 | 228x |
| S505-10-R | 250 | 1500 | 0.0061 | 397 |
| S505-12-R | 250 | 1000 | 0.0053 | 713.7x |
