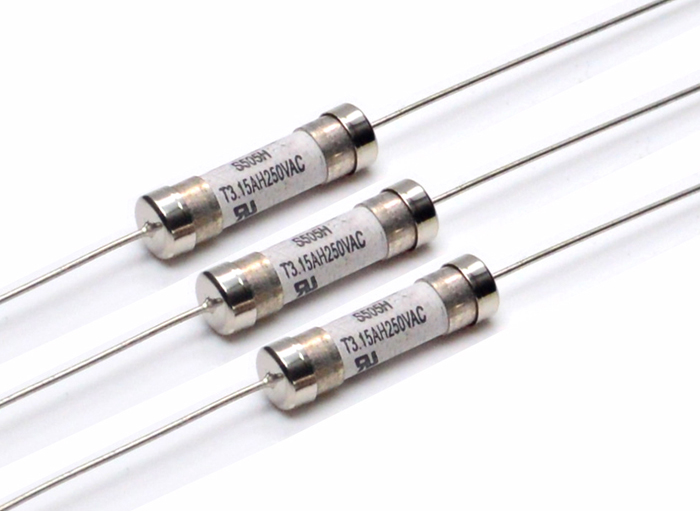

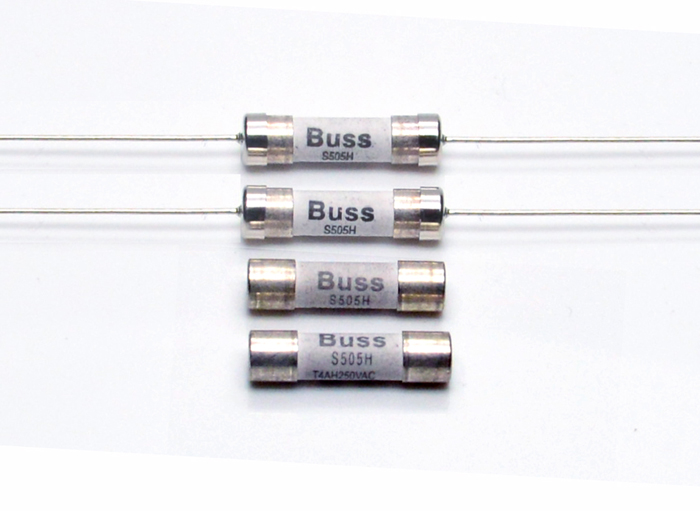

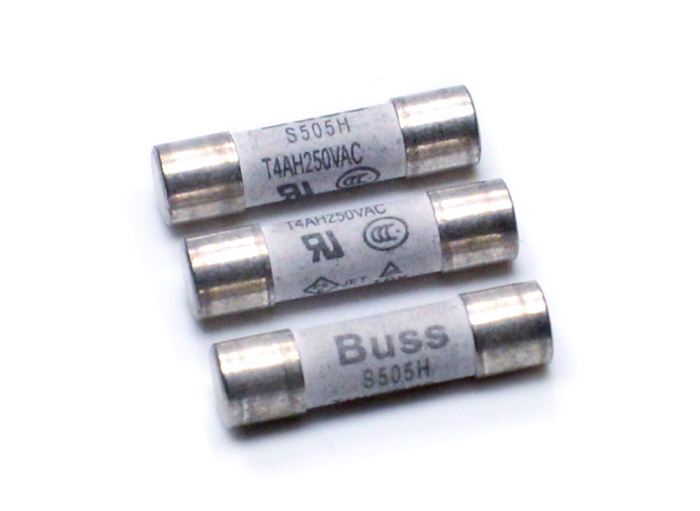

BUSSMANN S505H 500VAC 5*20 高分断 慢断陶瓷
参数表
| 料号 | 额定电压 | 电压降 | 冷电阻 | 熔断能量值 |
| S505H-500-R | 250 | 295 | 0.507 | 0.188 |
| S505H-800-R | 250 | 189 | 0.237 | 0.632 |
| S505H-1-R | 250 | 153 | 0.14 | 1.28 |
| S505H-1.25-R | 250 | 150 | 0.108 | 2.22 |
| S505H-1.6-R | 250 | 125 | 0.07 | 6.78 |
| S505H-2-R | 250 | 128 | 0.055 | 11.44 |
| S505H-2.5-R | 250 | 126 | 0.04 | 24.23 |
| S505H-3.15-R | 250 | 121 | 0.031 | 43.55 |
| S505H-4-R | 250 | 90 | 0.019 | 38.45 |
| S505H-5-R | 250 | 89 | 0.015 | 71.3 |
| S505H-6.3-R | 250 | 80 | 0.011 | 111.4 |
| S505H-8-R | 250 | 76 | 0.007 | 228.2 |
| S505H-10-R | 250 | 72 | 0.006 | 349.5 |
